DC12V Infrared Photocell Beam Sensor Automatic Gate Door Garage Shutter Barrier Detector for Door Window Burglar Alarm System Sliding Gate Opener Accessory 24V 1 Pair(Transmitter and Receiver)

Feature:

1. Wide Application: Works for all gate openers. Can be widely used for access control system, parking lot, defence wall, door and window, balcony, garage, passage and other places. Great to be installed for security system in school, office building, home yard, etc.
2. Stable Signal Transmit: High power infrared transmitter and receiver. The transmitter creates a stable and invisible infrared beam up to 65in (20m). When interrupt the infrared beam, the relay will output switch signal.
3. Water Resistant and UV Proof: Fully sealed water resistant egg shaped cover, sunlight filtering case, enables it to work in harsh environment. Easy installation.
4. Stable to Use: Features advanced security technology that ensures multiple conservation and safety. Infrared Photocell beam will make the gate stop or reverse automatically in case of obstruction happening to protect your safety and property.
5. Easy to Install: Install each pair at the opposite positions.Then there is a infrared area between these two detector parts. When someone passes the infrared region, the detector will send alarm signal to the security alarm host (which not included here).

Specification:

Color: Black
Material: PC (Water Proof, UV proof)
Detect Area:  Outdoor: 20m; Indoor: 30m
Detect Speed: 30ms
Infare-Red Frequency: 1.92Khz
Length: 940nm
Working Voltage: DC 12-24V
Input  Curren: RX 15mA – TX 30mA

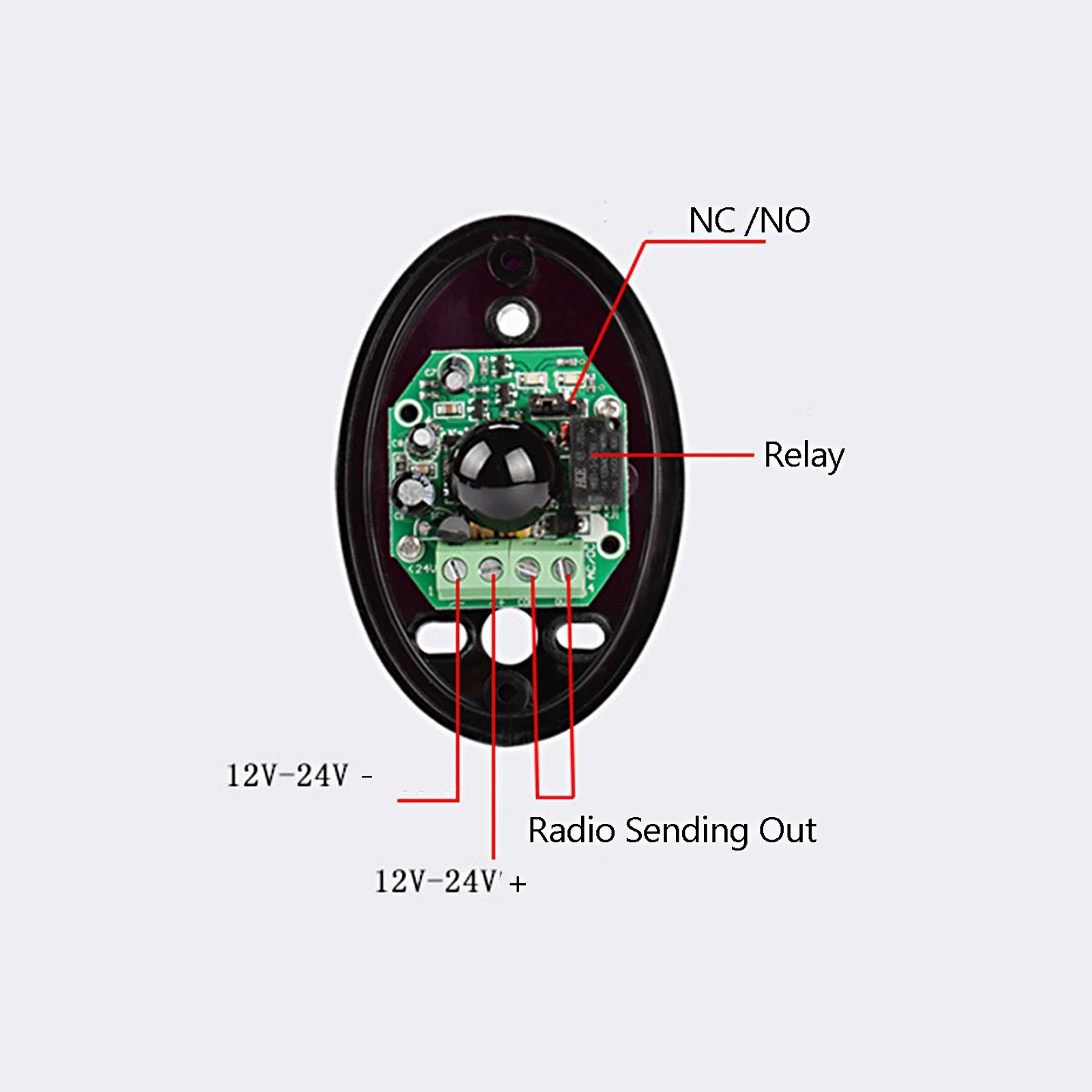

Relay Output: A1 maximum 36V

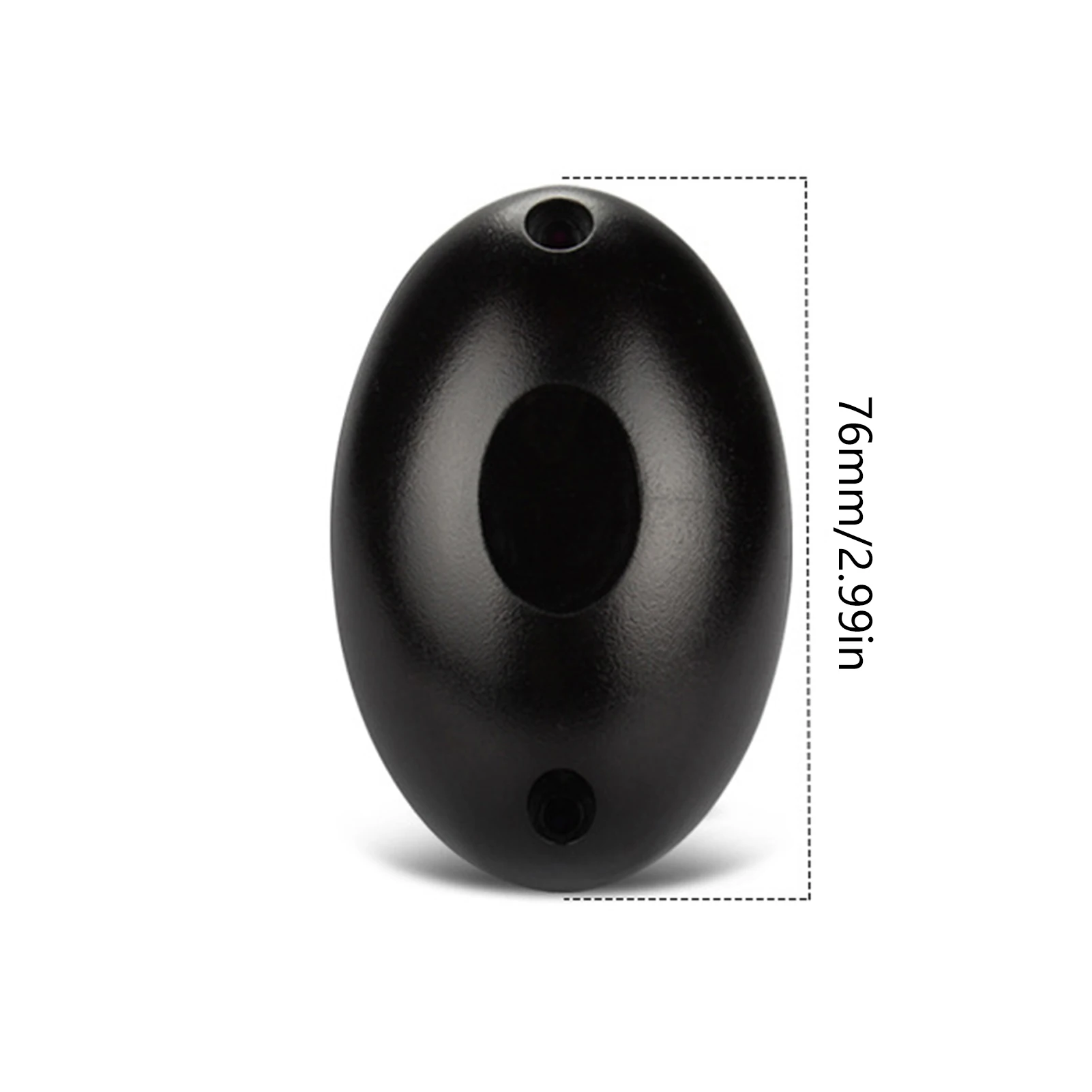

Item Size: 76*49.2*21.6mm/3.0*1.9*0.9in

Package List:

1 * Pairt of Infrared Sensor( Transmitter and Receiver)
