Description
- Hign-concerned Chemical: None
- Theory: Optical Sensor
- Model Number: TFmini Plus
- Type: Optical-Electronics Sensor
- Origin: Mainland China
Benewake TFmini Plus Laser Level Distance Sensor Waterproof IP65 Lidar Range Finder UART Anti-dust 12m 1000Hz UART for Arduino Raspberry Pi STM32
Description
TFmini Plus is a milestone of Benewake in the process of promoting the cost-effective -LiDAR. Apart from low-cost, small-size and low-power-consumption, TFmini Plus also improves the frame rate, introduces.
IP65 enclosures and optimizes various compensation algorithms. These new characters greatly expand the application fields and scenarios of TFmini Plus. The product is compatible with both the UART and I2C interface. Different interfaces can be switched by commands.
|

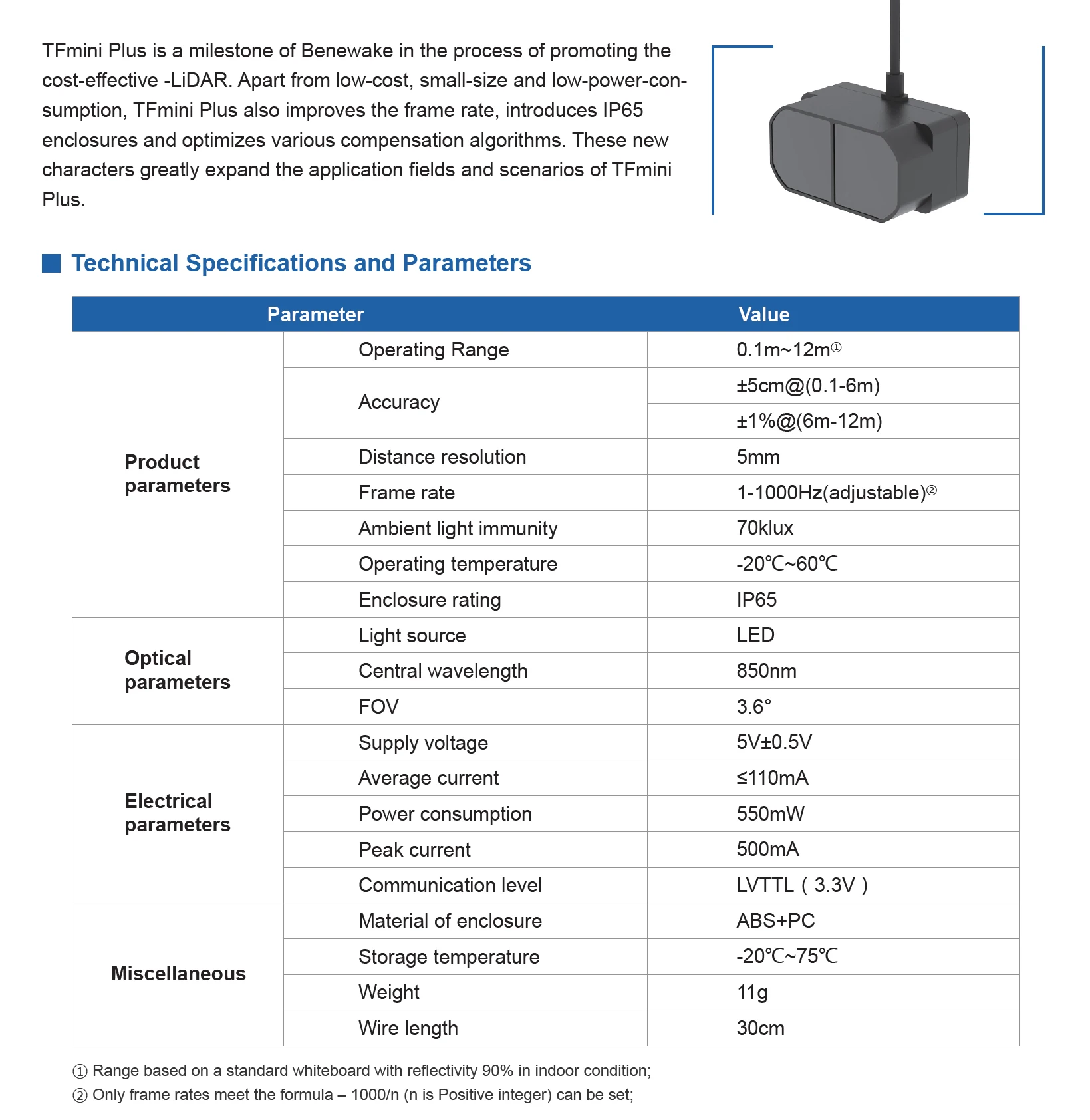

Specification |
|
|
Range
|
0.1-12m |
|
Accuracy |
±5cm@（0.1-6m），±1%@（6m-12m） |
|
Resolution |
5mm |
|
Frequency |
1-1000Hz, standard is 100Hz |
|
Light Sensitivity |
70klux |
|
Operation temperature |
-20℃~60℃ |
|
Waterproof |
IP65 |
|
Light and Wave length |
LED 850nm |
|
Receiving Anger |
3.6 degree |
|
Supply Voltage |
5V±0.5V |
|
Average current |
110mA |
|
Average Power |
550mW |
|
Peak Current |
300mA |
|
Communication Level |
LVTTL(3.3V) |
|
Interface |
UART, I/O and IIC. Default is UART |
|

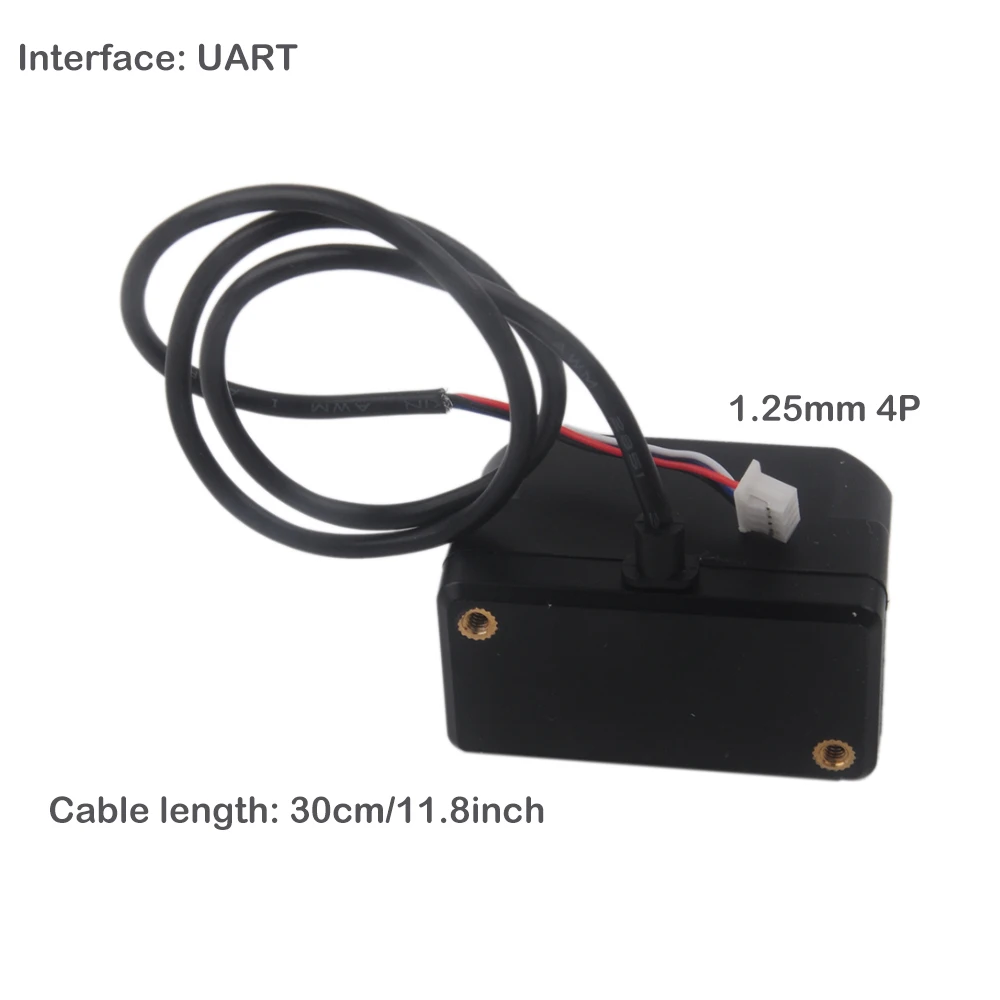

Cable length |
30cm |
Pcakage includes:
1 X TFmini Plus
